48V Household Solar Battery Storagy 5Kwh 10Kwh 20Kwh Lithium Ion Battery Powerwall

Place of Origin : china

MOQ : negotiated

Price : negotiated

Payment Terms : L/C, D/A, D/P, T/T, Western Union, MoneyGram

Delivery Time : negotiated

Capacity : 100Ah 150Ah 200Ah

Voltage : 51.2V

Weight : 62kg 79kg 98kg

Battery Type : Lithium Ion, LiFePO4, Other

Internal Impedance (AC) : ≤30mΩ

Charge Temperature Range : 0℃ - 60℃

Contact Now

48V Household Solar Power Energy Storagy 5Kwh 10Kwh 20Kwh Lithium Ion Battery Powerwall Systems

Products Description

Power storage wall is a battery that stores energy, detects outages and automatically becomes your home's energy source when the grid goes down.

Unlike gasoline generators, Power storage wall keeps your lights on and phones charged without upkeep, fuel or noise. Pair with solar and recharge with sunlight to keep your appliances running for days.Power storage wall reduces your reliance on the grid by storing your solar energy for use when the sun isn't shining.

Use Power storage wall alone or combine it with other products to save money, reduce your carbon footprint and prepare your home for power outages.

Specification

Model No.	5000W	10000W
Nominal Voltage	51.2V (16Series)
Rated Capacity	100AH	200AH
Storage Energy Capacity	5120WH	10240WH
Internal Impedance (AC)	≤30mΩ
Circle Lifetime	≥5000 Circles @ 80% DOD, 25℃, 0.5C ≥4000 Circles @ 80% DOD, 40℃, 0.5C
Charging Voltage	56.0V + 0.5V
Max Continuous Operation Current	100A/150A (Optional)
Discharge Cut-off Voltage	45V + 0.2V
Charge Temperature Range	0℃ - 60℃
Discharge Temperature Range	-20℃ - 60℃
Storage Temperature Range	-40℃ - 55℃ @ 60% + 25% Relative Humidity
Dimensions (LWH)	680485220mm ( Including the Bracket)
Weight	62kg	98kg
Communication Mode	RS232-PC, RS485 (B) -PC RS485 (A)- Inverter, Canbus- Inverter
Parallel Connection	Support up to 10 sets of batteries in parallel
Certificate	UN38.3 / MSDS / UL1973 (Cell) / IEC62619 (Cell)

The target energy storage capacity will be achieved by different models of batteries in parallel.

48V/51.2V 100AH 5.12WH/PC
48V/51.2V 200AH 10.24KWH/PC

48V Household Solar Battery Storagy 5Kwh 10Kwh 20Kwh Lithium Ion Battery Powerwall

Details Images

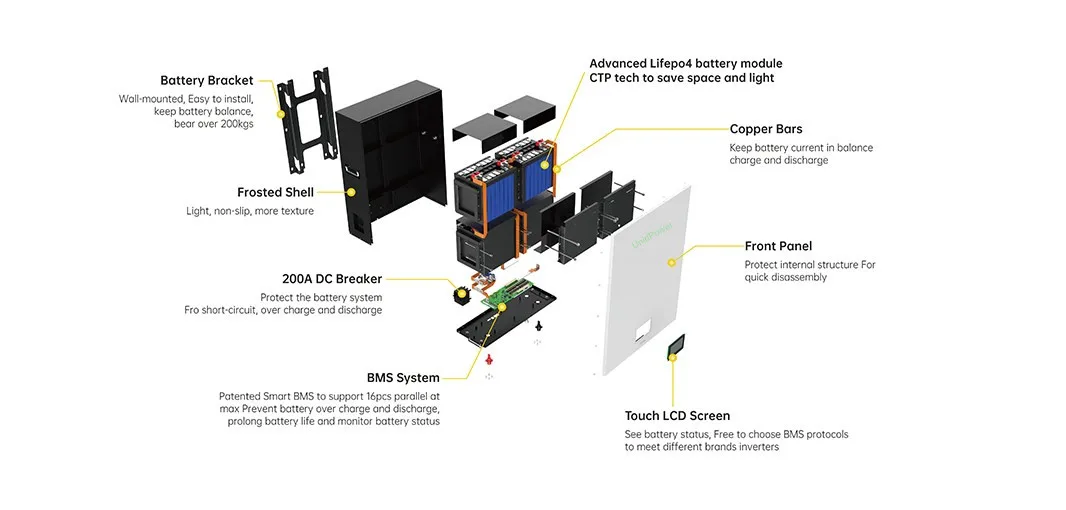

Products Features and Advantages

※ 5inch big touch LCD Screen
※ Grade A cells with over 6000 times cycle life and offer 5 years extended warranty available to increase ROI
※ Build in intelligent BMS having protection functions including over-discharge, over-charge, over-current and over-high or low
temperature. The system can automatically manage charge and discharge state and balance current and voltage of each cell
※ Support max 16pcs parallel/stack power to 229kwh
※ Max charge and discharge 150A= 7680Wh to AC loading
※ Perfectly match over 16 brands hybrid inverters in the world
※ CTP tech to save battery size and reduce weight
※ Built in double industrial heavy-duty power switch to warranty battery safety
